🔄 State Machine & Workflow
The state machine outlines how the system retrieves and displays GIFs step-by-step.

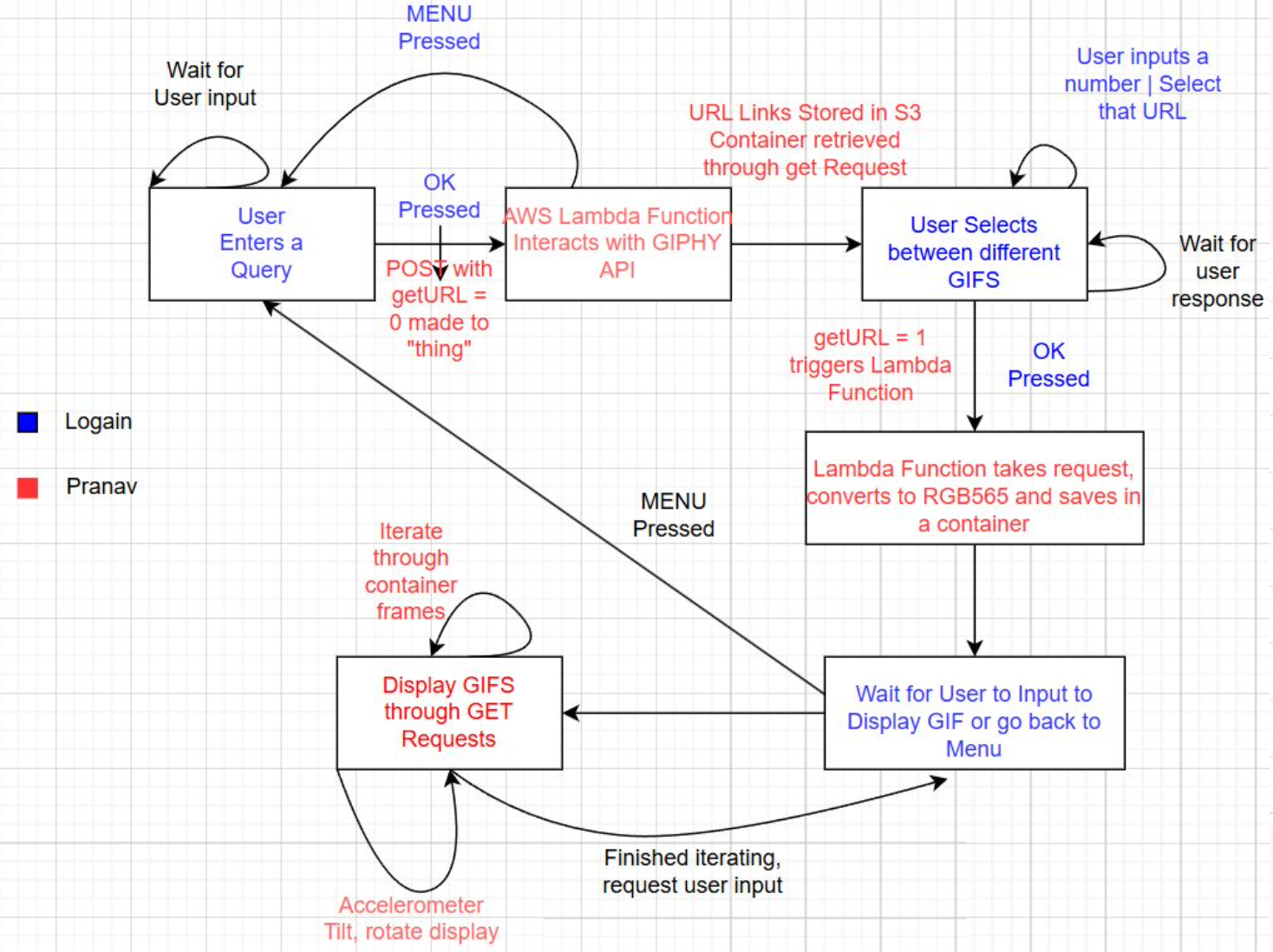

📌 State Machine Diagram
The system follows this structured workflow:
1️⃣ User enters a search query via remote.
2️⃣ CC3200 sends the query to AWS Lambda & Giphy API.
3️⃣ GIF URLs are retrieved and displayed as options.
4️⃣ User selects a GIF; AWS Lambda processes and stores it.
5️⃣ LaunchPad fetches and displays the GIF on OLED.
6️⃣ Accelerometer ensures dynamic screen rotation.
